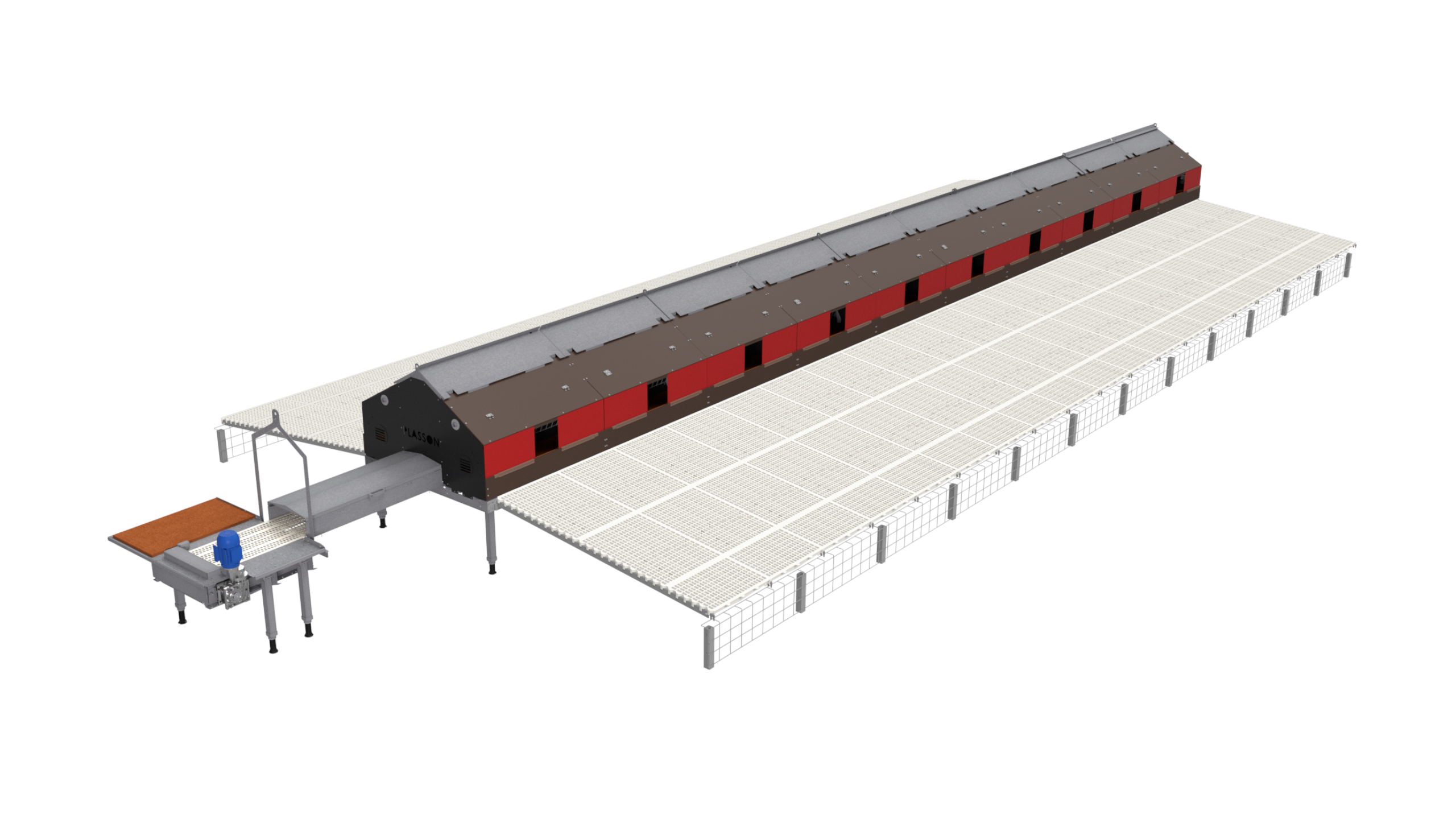

Plasson offers an innovative top of the line Layer’s nesting system, called PlassNest.

The new nesting system was designed to ensure the ultimate conditions for egg laying, breeders and mating behavior.

Layouts

The Plassnest is a modular system and as such, multiple different equipment layouts can be applied, according to the grower preferences:

  1. 2 or more Distributed nest rows, with gaps between each nest
  2. Central nest configuration with slats on both sides
  3. Nests without legs that seats on the edges of the raised slatted area

Main advantages

Thanks to the dark black walls, and the improved ventilation, the birds feel safe and comfortable inside.
The PlassNest system allows easy maintenance and handling during the cycle and between cycles.

The eggs are collected via a 40cm egg belt, that prevents breakage and cracks of the eggs.
The egg belt is well protected by a lid, but also accessible for maintenance.

The Egg belt operates in various speeds and can be adjusted according to actual eggs load.

The PlassNest also have a motorized expulsion system, that can be preprogrammed according to the grower preferences and expel the hens out of the nest.

Plasson`s PlassNest is made of strong and durable materials, for longevity and minimum maintenance. Thanks to its automatic system, unnecessary entries to the house are saved.

Allows Flexibility in Nests layout, number of rows and nests, according to house dimensions and birds density (House structure optimization).

Nest
The nest is supplied as a single unit basic configuration (Single nest), and it can be extended to either a double nest module, or a continues extensions that creates full length row along the house.
  1. Vents
  2. Nest Roof
  3. Floor Mat
  4. Flaps
  5. Expulsion system
  6. Foldable legs
  7. Adjustable Leg height
Egg Conveyor
Expulsion system
The auto-expulsion system, enables the grower to drive out hens that continues incubating their eggs. During nighttime the nests can be closed.
The system can be preprogrammed to expel the birds in a specific hour every day.
Back Unit
The back unit includes a roller cylinder to keep the egg belt at the right tension, and a cleaning brush. The unit cover can be removed for easy maintenance.
Egg's collection table
The egg collection table is positioned at the service room of the house and enables a fluent and efficient eggs collecting including automatic emergency stop mechanism.
The egg belt system can be also connected to a Farm egg conveyor, that collects the eggs from all the houses in the farm.
  1. Motor
  2. Table underside
  3. Table end
