Nipples Drinking System

Nipples Drinking System
+
+
+
+
+
+
Overview
Main features
Media
Technical

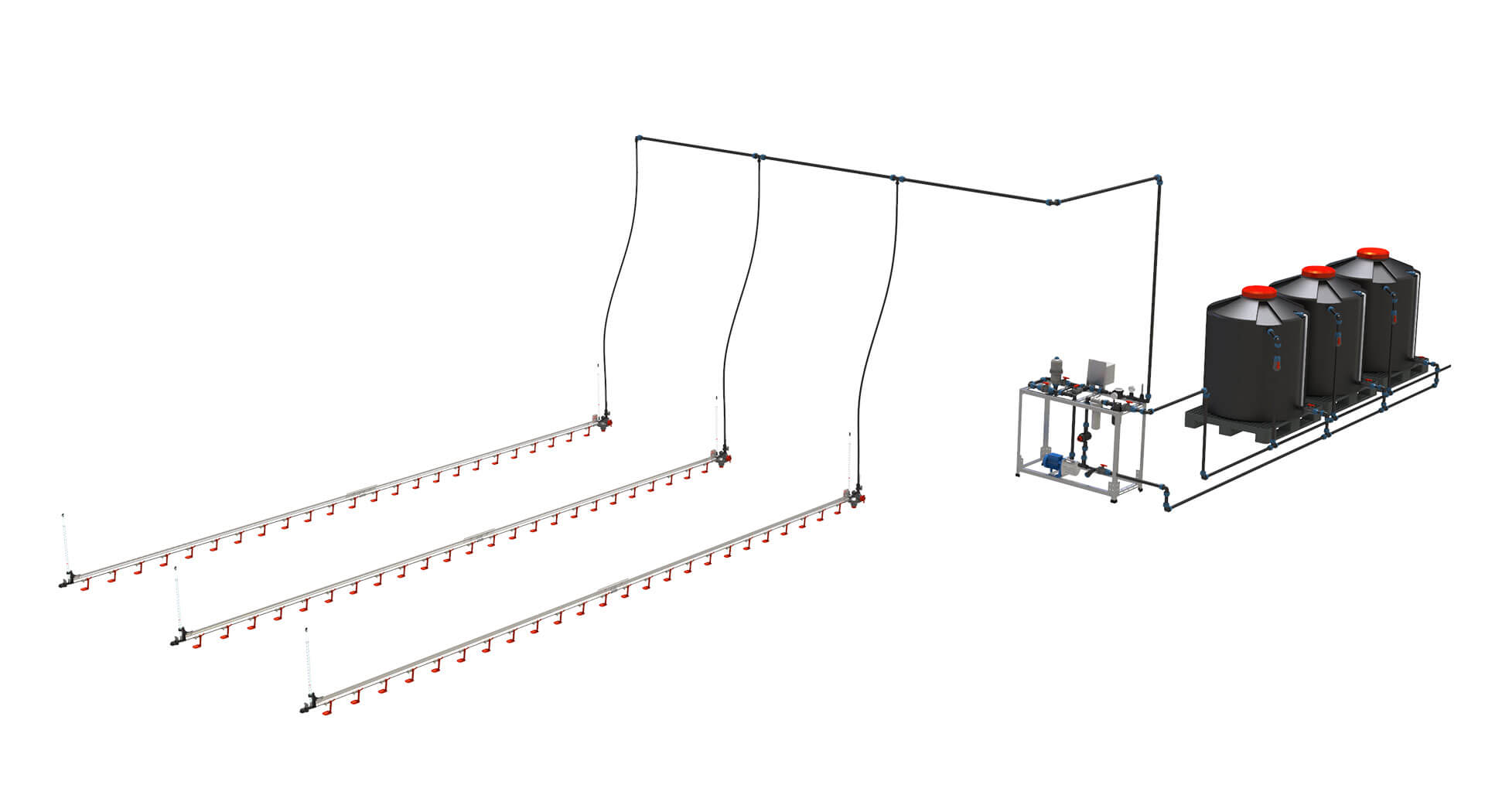

Plasson’s nipple drinking system presents a comprehensive solution that guarantees a reliable and efficient way to supply water to the birds, thus promoting proper weight gain and ideal bird performance.
The system is robust, durable, and constructed of high-quality materials and components.
Plasson’s nipple drinking solution includes a water head system and nipple drinking line. Plasson takes pride in its innovative approach and offers technologically advanced upgrade options

  • Robust and durable system to ensure reliable water supply
  • High quality components
  • Comprehensive solution for all water requirements – supply, regulation, filtration, treatments and more
  • A full range of nipples to support the changing bird growth stage, pressure and flow rates required
  • Focus on performance factors such as weight gain, accurate water consumption and more
  • Easy installation and operation
  • Innovative and unique upgrades – Water on Demand, auto Flushing and Flush Control (Wireless Flushing)
Water Reservoir Tanks
Serve as a backup water supply. PE pipes 25/32 mm in diameter ensure an efficient supply of water from the tanks to the water head table or wall panel.
  1. Plastic tanks
  2. Water level indicator
  3. Plastic pallets
  4. Valve
  5. PE pipe
Water Head
The central control point for all water applications in the chicken house. Water is treated and regulated before being directed to each system in the house.
  1. Water inlet
  2. Water filter
  3. Water softener
  4. Universal Pressure Regulator (UPR)
  5. Water pump
  6. Dosage pump
  7. Water meter
  8. Pressure gauge
  9. Water outlet
The central control point for all water applications in the chicken house. Water is treated and regulated before being directed to each system in the house.
  1. Water inlet
  2. Water softener unit
  3. Water filter
  4. Universal Pressure Regulator (UPR)
  5. Water meter
  6. Pressure gauge
  7. Dosage pump
  8. Water outlet
Water Fill Line
Directs water from the water head table/wall panel to the nipple drinking lines
  1. Water table outlet
  2. PE pipe
  3. Flex tubes
Line Head and Line End
  1. Line head pressure regulator
  2. Flushing valve
  3. Valve
  4. Sight tube
Nipple Drinking Lines
Plasson’s nipple drinking system has consistently proven itself over the years to be a high-performance system, guaranteeing a reliable and efficient way to supply water to the birds and thus promote proper weight gain and ideal bird performance.
The nipple drinker system is a robust, durable system constructed of high-quality components.
  1. Flex tube
  2. Line head pressure regulator
  3. Pressure indicator
  4. Aluminum profile
  5. Perforated PVC pipe
  6. Nipple drinkers and trays
  7. Line end
Nipple Drinkers
Drinking stations for the birds, with an optional drip tray
  1. Broiler nipples
  2. Trays
Suspension
The suspension system enables raising the drinking lines in accordance with the birds' growth stage as well as ongoing tasks conducted inside the chicken house.
  1. Winch
  2. Pulleys
  3. Nylon cords and adjusters
  4. Suspension clips
Options & Add-Ons
  1. Super Easy Chick Start (SECS)
Water on Demand (WOD) Pro
A central control point that enables precise management of water pressure in all drinking lines according to birds’ changing demands, both during a daily 24-hour cycle and throughout the entire grow-out period. The system can connect to the house controller, and is also available with a stand-alone controller.
  1. Pressure transmitter
  2. Frequency converter
  3. Variable speed pump
  4. Universal pressure regulator (UPR)
  5. Pressure gauge
  6. WOD reducer
Automatic Flushing - Wired / Flush Control
Allows for the planning and managing of drinking line flushing. Pre-programmed flushing plans are based on climate conditions, water quality, water treatment compounds and medications added to the water, birds’ growth stage, and more. The flushing system is integrated into Plasson’s new MK2 regulator series.
  1. Flush Command
  2. Flushing valve
  3. Drinking line
  4. Line end
A wireless solution for applying automatic flushing. Drinking lines are pre-programmed to flush periodically based on factors such as climate condition, water quality, added water treatment compounds and medications, birds' growth stage, and more...
  1. Wall unit
  2. Plasson Flush Control
  3. Regulator unit
  4. Flushing valve
  5. Drinking line
  6. Line end
Slope Regulator
PLASSON slope regulators break the pressure build-up in nipple lines caused by sloped floors/

- Maintain the required pressure along the nipple line
- Robust design
- Innovative Bayonet connection for easy installation and maintenance
- No need for a by-pass during flushing
- Available for pressure breaks of 10cm, 15cm and 30cm
